Installation
Pinout
Make yourself familiar with the pinout of your board.
Below you’ll find the pinout diagrams of the boards, refer to the guide for your machine on how to wire it.

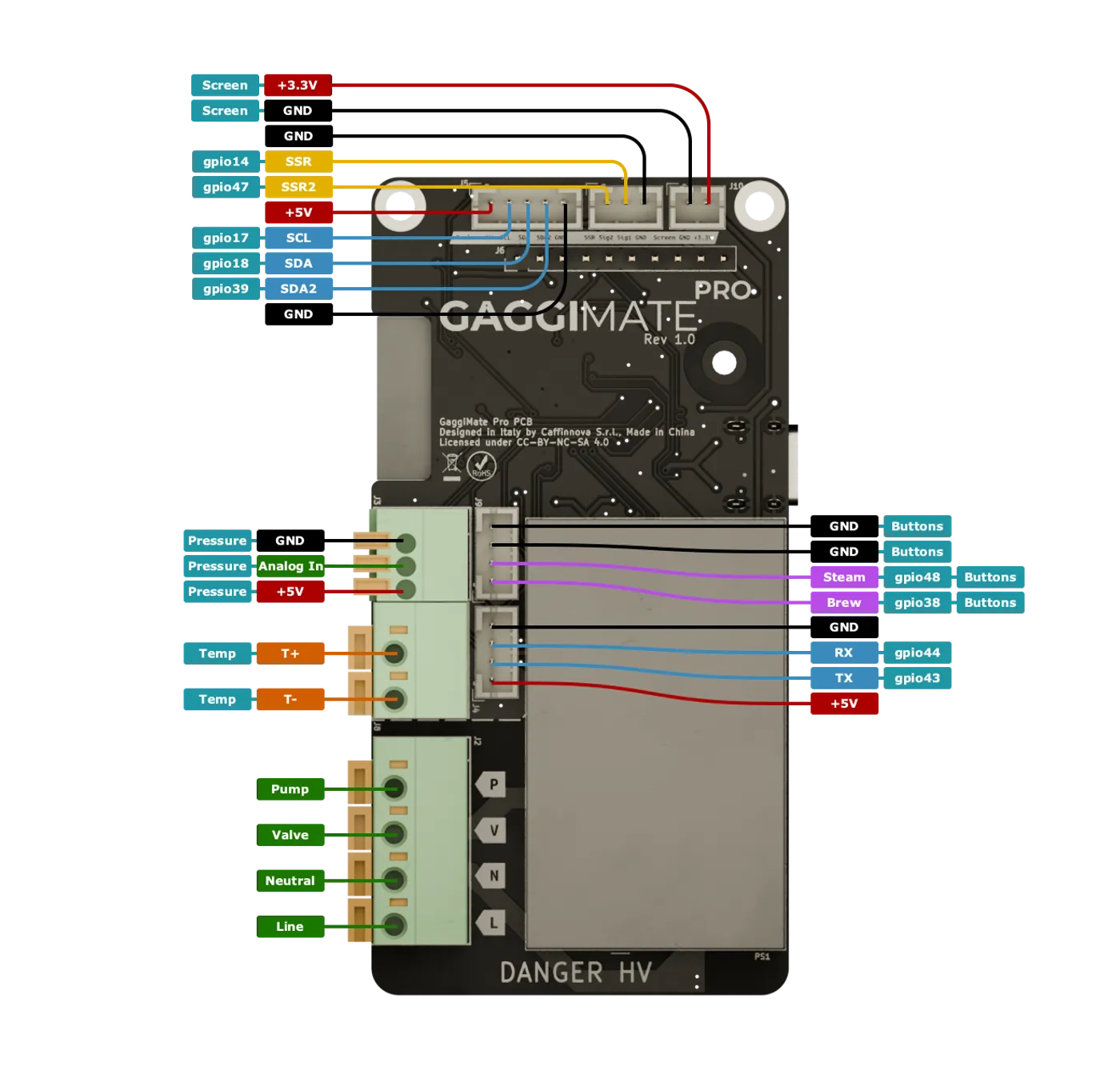

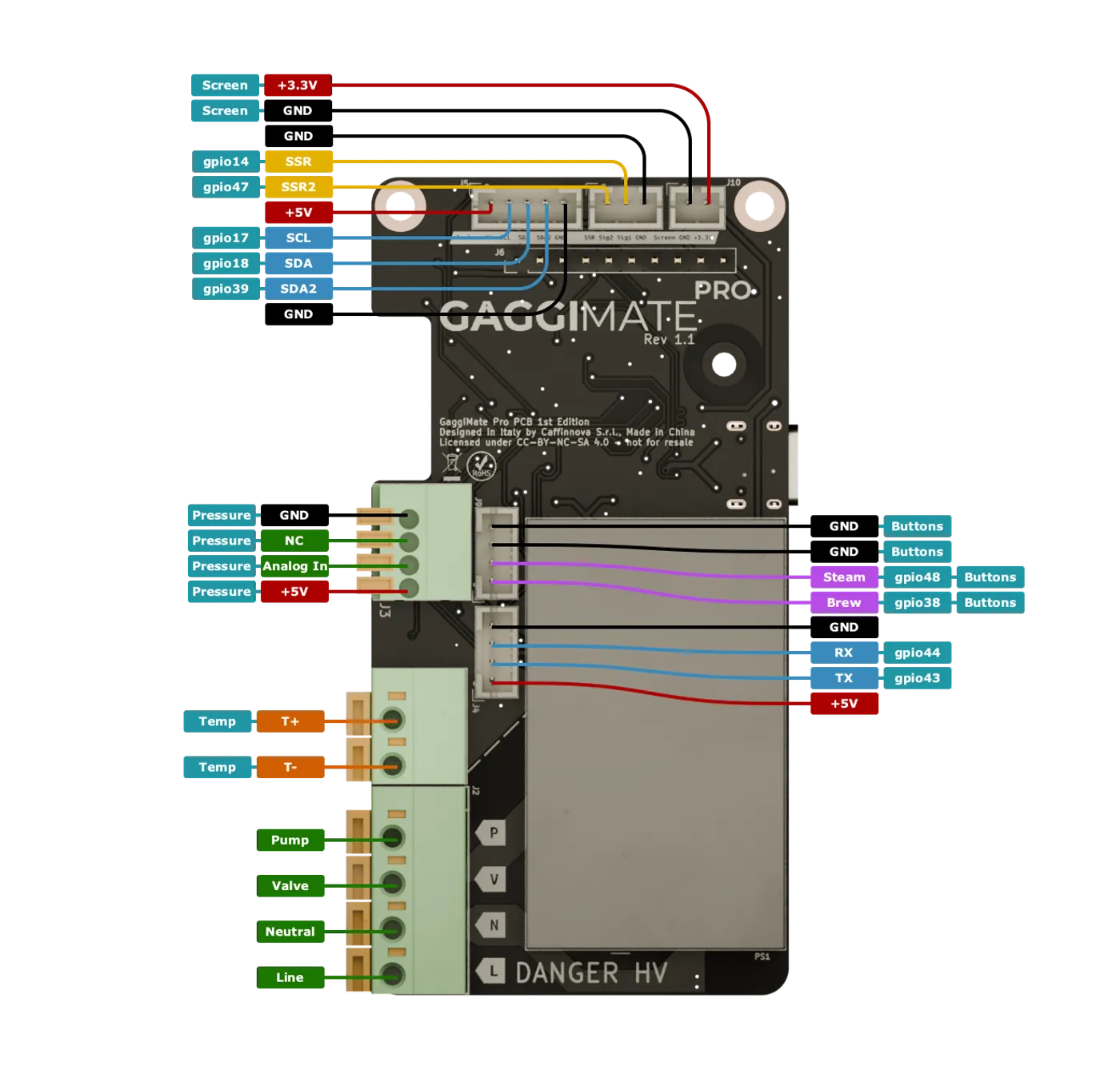

GaggiMate Pro Rev 1.0
This is the current revision of the Pro board as shipped with the GaggiMate Pro kits.
GaggiMate Standard Rev 2.0
This is the current revision of the Standard board as shipped with the GaggiMate Standard kits.

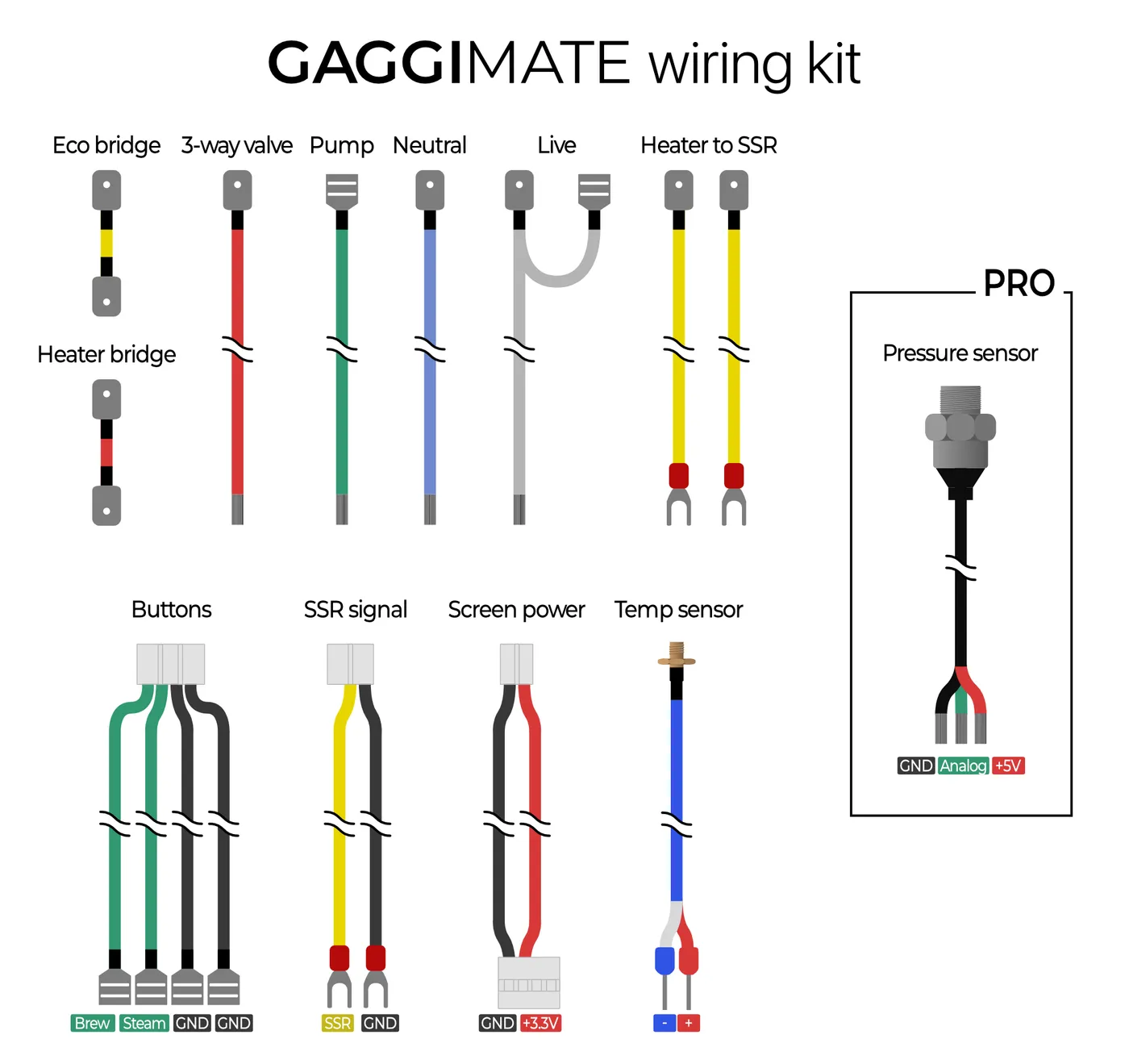

Wiring Kit
This is the pinout of the supplied wiring kit. Live and Neutral might be switched for some installations
GaggiMate Standard Rev 1.0 (2024 Group Buy)
